PTFE dip pipes


Dip pipe in carbon steel and Armylor® PTFE for columns and chemical reactors
PTFE-lined dip pipes are used to introduce products into reactors and columns.
Manufactured in carbon steel and lined inside and outside with PTFE extruded liner, they are designed to bring the product up to the heart of the reaction despite the corrosive environment.
Key features:
- Designed on customer's request

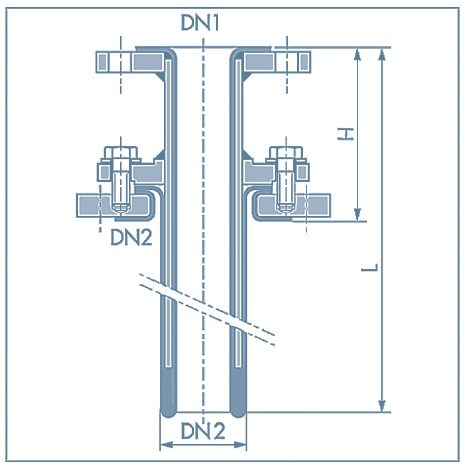

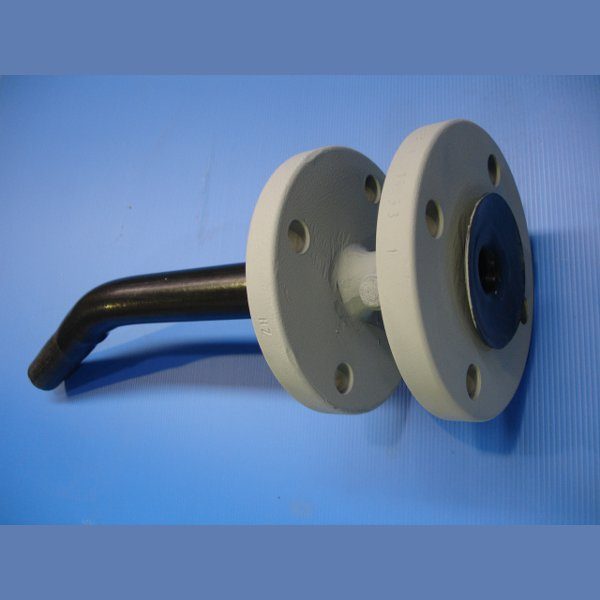

Diameter, Length, Flange rating on vessel and pipe connection - Straight or bended type
- Mechanical strength thanks to steel pipe
Customer benefits:
- Flexible design according to the process constraints
